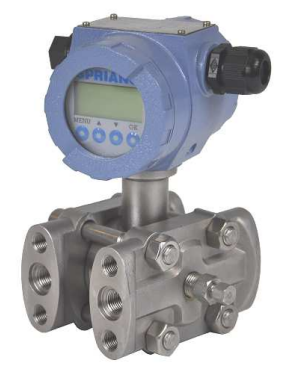

SPRIANO Technologies, inc SMART DIFF. PRESSURE TRA

SPRIANO Technologies, inc SMART DIFF. PRESSURE TRANSMITTERS 压差变送器 SST57BH1F20021

H - OUTPUT: 4-20 mA + HART
1 - EXTERNAL PARTS: STAINLESS STEEL + DIAPHRAGM IN AISI 316
F - NOMINAL RANGE: 0÷2500 mbar
2 - CALIBRATION RANGE: 0÷1600 mbar
0 - OPTIONS: NO OPTIONS
0 - OPTIONS: NO OPTIONS
2 - PROCESS CONNECTIONS: 2 X ½" NPT-F (WITH ADAPTERS)
1 - EXPLOSION PROTECTION 2014-34-EU: ATEX II 1G Ex ia IIC T6
(-40ºC<Ta<40ºC), T5 (-40ºC<Ta<55ºC), T4 (-40ºC<Ta<80ºC) Ga
- OVERALL ACCURACY OF DPT (COMPREHENSIVE OF HYSTERESIS,
NON-LINEARITY, REPEATABILITY) IS WITHIN +/- 0.1 % FS - ACCORDING TO IEC 60770;
- HOUSING: DIE CAST ALUMINUM ALLOY EN AB-44100;
- INGRESS PROTECTION EN 60529: IP66;
- ELECTRICAL CONNECTIONS: M20X1.5;
- BODY MATERIAL: SS AISI 316;
- DIAPHRAGM MATERIAL: SS AISI 316;
- WETTED PARTS: SS AISI 316;
- DIGITAL LOCAL INDICATOR INCLUDED;
- NAME PLATE AISI 316;
- BRACKET FOR 2 INCH PIPE MOUNTING
