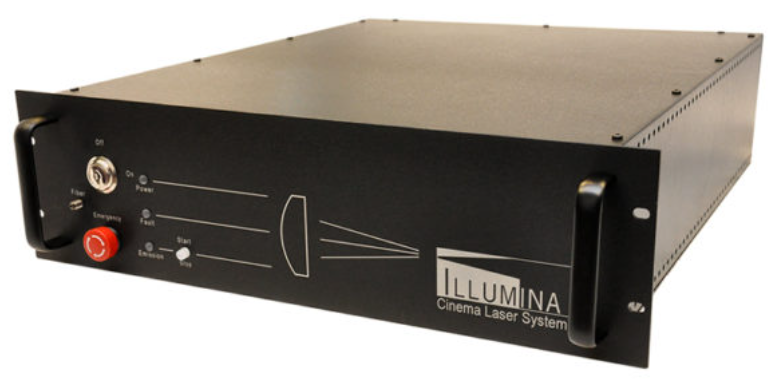

Power Technology Cinema激光系统
Illumina Cinema激光系统的灯泡寿命是灯泡寿命的20倍,在10年内保持80%的原始亮度的同时,几乎消除了灯泡更换费用。这在投影仪的使用寿命内节省了数千美元,同时为更多的购票客户提供了更明亮、更吸引人的体验。Illumina轻松超越了当今苛刻的3D应用程序的亮度要求,以及未来的沉浸式影院体验。
Illumina光场250000流明250000
Color |
Red/Green/Blue simultaneously |
Number of Primary Colors |
3 |
Output Power Lumens |
250000 |
Operating Mode |
CW |
Audible Noise |
dBm |
19" Rack Spaces |
3U |
Product Weight |
600 |
iLLUMINA激光照明投影光源(65k流明)65000
Color |
Red/Green/Blue simultaneously |
Number of Primary Colors |
3P |
Output Power Lumens |
65,000 |
Beam Shape |
Round |
Operating Mode |
CW |
Input Voltage (AC) |
90 – 240 |
Max Operating Current (mA) |
000 (32A), 32 |
AC Input Frequency |
50/60 Hz |
Exhaust CFM |
90 CFM for each rack |
Audible Noise |
68 dBm |
Cabinet Size |
Standard 19" Rack |
Dimensions |
5.3 x 17 x 20 inches |
19" Rack Spaces |
2U + 3U |
Temperature |
10 – 35°C |
Product Weight |
84 |
Laser Safety Class |
4 |
Certifications |
RoHS |
iLLUMINA激光照明投影光源(34k流明)34000
Color |
Red/Green/Blue simultaneously |
Number of Primary Colors |
3P |
Output Power Lumens |
34,000 |
Beam Shape |
Round |
Operating Mode |
CW |
Input Voltage (AC) |
90 – 240 |
Max Operating Current (mA) |
000 (16A), 16 |
AC Input Frequency |
50/60 Hz |
Exhaust CFM |
60 |
Audible Noise |
68 dBm |
Cabinet Size |
Standard 19" Rack |
Dimensions |
5.3 x 17 x 20 inches |
19" Rack Spaces |
2U + 3U |
Temperature |
10 – 35°C |
Product Weight |
77 |
Laser Safety Class |
4 |
Certifications |
RoHS |
iLLUMINA激光照明投影光源(24k流明)24000
Color |
Red/Green/Blue simultaneously |
Number of Primary Colors |
3P |
Output Power Lumens |
24,000 |
Beam Shape |
Round |
Operating Mode |
CW |
Input Voltage (AC) |
90 – 240 |
Max Operating Current (mA) |
000 (12A), 12 |
AC Input Frequency |
50/60 Hz |
Exhaust CFM |
60 |
Audible Noise |
68 dBm |
Cabinet Size |
Standard 19" Rack |
Dimensions |
3.5 x 17 x 20 inches |
19" Rack Spaces |
2U |
Temperature |
10 – 35°C |
Product Weight |
35 |
Laser Safety Class |
4 |
Certifications |
RoHS |
iLLUMINA激光照明投影光源(10k流明)10000
Color |
Red/Green/Blue simultaneously |
Number of Primary Colors |
3P |
Output Power Lumens |
10,000 |
Beam Shape |
Round |
Operating Mode |
CW |
Input Voltage (AC) |
90 – 240 |
Max Operating Current (mA) |
000 (6A), 6 |
AC Input Frequency |
50/60 Hz |
Exhaust CFM |
60 |
Audible Noise |
64 dBm |
Cabinet Size |
Standard 19" Rack |
Dimensions |
3.5 x 17 x 20 inches |
19" Rack Spaces |
2U |
Temperature |
10 – 35°C |
Product Weight |
28 |
Laser Safety Class |
4 |
Certifications |
RoHS |
询价采购Power Technology Cinema激光系统
请用微信扫描下方二维码或手动添加微信号2351992198
