PAVE PAVE-Seal 气密电气贯穿件

PAVE-Seal® 气密电气贯穿件盲塞至多2根电线，真空电气贯穿件 盲塞至多2根电线 请在下面页面滚动以选择和查看盲塞（无电线）或至多2根电线的气密绝缘电线密封的选项和图纸。对于超过2根电线的气密电缆密封，请从以下链接中选择相应范围。

其他电线范围 3至5根电线 6至13根电线 14至900根电线
真空电线贯穿件及电气真空贯穿件 PAVE气密密封件是双向的，可在任一方向或双向密封压力和真空。对于超过300 psi（20 bar）的压力，如果需要更改图纸上显示的压力方向，请咨询销售工程师。 任何类型的商用或军用绝缘电线或护套电缆均可作为气密、气体密封、液体密封、真空密封的隔板电线贯穿密封，用于低压和高压真空电气密封，包括双向压力方向使用。操作温度可以根据设计和材料在-200°C至200°C之间变化和修改，以满足设计和客户要求。我们所有的密封件都是气密的，这意味着它们能通过非常低的氦气泄漏测试（取决于设计可达10^-9 cc/秒），无论图纸上显示的泄漏测试如何，也可以进行修改。在大多数情况下，如果有要求，密封件也能承受显著高于图纸上所示的压力。密封件内的任何地方都不会检测到气体或液体的泄漏，包括通过电线的内部，而且电线可以剪短而不影响密封。 真空电气贯穿件和真空贯穿连接器 无论是小批量还是大批量，我们都提供标准和定制设计的气密密封设计，具有各种安装样式以及成本高效、紧凑、高电线密度的节省空间设计，大多数使用O型圈（活塞或端面密封）与NPT密封，亦可提供电子或激光焊接设计。我们的气密环氧电线密封对包括溶剂、燃料、油和气体在内的各种化学品具有高度抵抗力，并且获得了NASA和AMAT的低挥发性认证，适用于10^-8 Torr的高真空。环氧样品也可供客户测试。 以下列表按电线或导体数量排列并链接到我们当前设计的PDF文件，按安装样式分组排列。如果您需要定制的气密电线贯穿密封，请在任何PAVE图纸上标记您所需的更改，或发送您自己的图纸或草图以获取报价，我们将很乐意快速协助您满足气密密封设计需求。

真空贯穿解决方案 至多可插入2根电线的插头

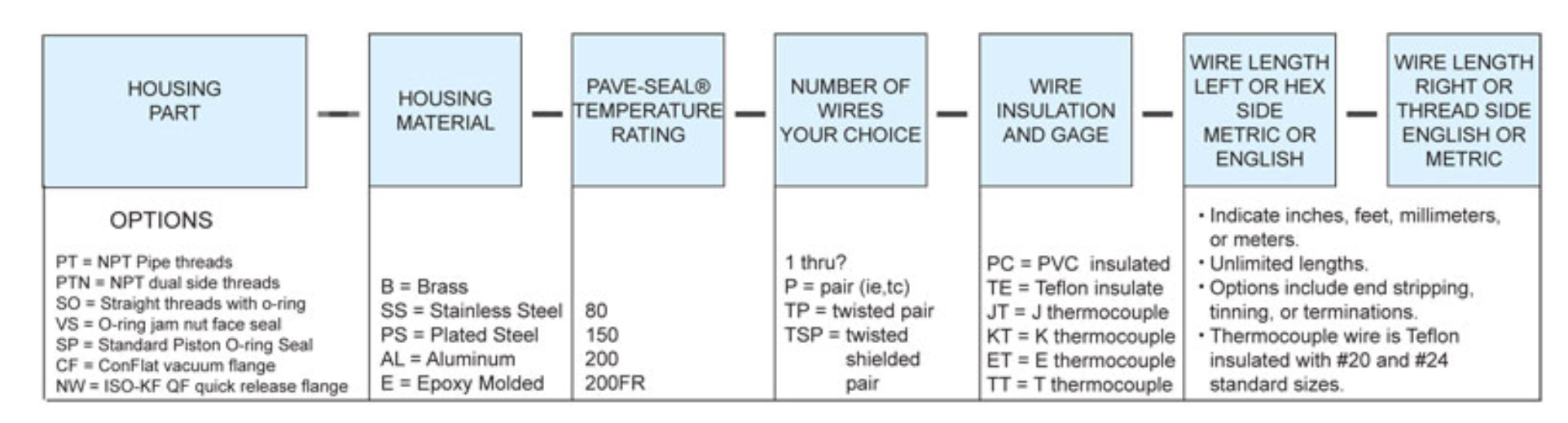

安装 连接线类型 总线数 PAVE描述 Wires 1 AWG # Wires 2 AWG # 货号 #
.558″ piston O-ring seal none 0 SP9/128-E-200-DUMMY PLUG 5480
1″ O-ring face seal none 0 VS15L-SS-150-PLUG blanking plug 2442
1¼” o-ring face seal none 0 VS18-SS-150-PLUG blanking plug 0 3852
1 ⅝” O-ring face seal none 0 VS22-E-150-PLUG blanking plug 0 2030
1 7/8″ o-ring face seal none 0 VS26-E-150-PLUG blanking plug 0 2054
2½” o-ring face seal none 0 VS32-E-150-PLUG blanking plug 2785
2¾” o-ring face seal none 0 VS44-SS-150-PLUG blanking plug 4864
½” NPT PTFE 2 PT8-SS-150-2-TEE14-10-10 2 14 1708
¼” NPT PTFE 1 PT4-SS-150-1-TE20-25-25 1 20 4644
½” NPT PVC 1 PT8-SS-80-1-PC2GRN-120-240 1 2 2408
½” mNPT ETFE 1 PT8-SS-150-1-TZ8-60-60 1 8 5460
¾” NPT nipple PTFE 1 PTN12-SS-200-1-TE18-12-24(20) 1 18 2508
⅜” SAE PTFE 1 SO6-B-80-1BLK-TEE16-15-10 1 16 047C
7/16″ -20 SAE o-ring PTFE 1 SO7-SS-150-1-TEE12-48-24 1 12 3811
3/4″ – 16 o-ring seal ETFE 1 SO12-SS-150-1-TZ8-20-20 1 8 5442
¼” Piston o-ring PTFE 1 SP4S-E-150-1-TE22-12-60 1 22 2005
⅜” Piston o-ring PTFE 1 SP6-E-150-1-TE20-25-25 1 20 1870
1/2″ piston o-ring seal ETFE 1 SP8A-E-150-1-TZ16-10-10 1 16 5050
½” Piston o-ring PTFE 1 SP8S-E-150-1-R2950062-15-15 1 16 2631
5/16″ Piston o-ring PTFE 1 SPF5L-E-150-1-TEE18-12-12 1 18 1836
.13″ bonded PVC 1 TP1-E-150-1-PC30-4-4 1 30 2073
½” o-ring face seal PTFE 1 VS8-SS-150-1-TEE12-72-24 1 12 2111
1 ⅞” o-ring face seal 0 VS26-SS-150-PLUG 0 4022
.61″ o-ring face seal PVC 2 CON610S-N-150-2-PC26-6-10 2 24 3443
0.61″ o-ring face seal PVC 2 CON610S-N-150-2-PC26-6-7.5 2 26 4154
11.5mm flange PTFE 2 FL4.9-V-150-2-TE30-12-12 Vespel 2 30 5013
Square flange PTFE 2 FL/PTF8-AL-150-2-TE14-3-2.5 2 14 2720
Flange mount PVC 2 MT-SS-200FR-2-KP26-95mm-BLADES 2 26 2406
1″ NPT PVC 2 PT16-B-4-ALPHA 5122C-120-30 2 22 1658
⅛” NPT PTFE 2 PT2 SS-80-2-TEE22-20-8 2 22 900
⅛” NPT PVC 2 PT2-B-80-2-PC24-6-6 2 24 1676
⅛” NPT PVC 2 PT2-SS-80-2-PC22-4.5-4.5 2 22 2021
⅛” NPT PTFE 2 PT2-SS-80-2-TEE22-6.0-6.0 2 22 2182
3″ NPT PVC 2 PT32-S-80-2-IPC24-60-84 2 TANK PLUG 2 24 775
⅛” NPT PTFE 4 PT2-SS-200-2/1P-TE24/KT30-6-6 2 24 Type K 3415
¼” NPT PTFE 3 PT4-SS-200-1-TSP26-24-24 twisted shielded pair 2 26 4728
¼” NPT PTFE 2 PT4-B-150-2-TET28-.29GT-2.25 2 28 2324
¼” NPT PTFE 2 PT4-SS-200-1-TSP20/LOOP-1.75-2.5 2 20 1515-1
⅜ NPT PTFE 2 PT6-SS-150-2-TE18-12-12 2 18 3730
⅜” NPT PTFE 2 PT6-SS-150-2-TE14-84-36 2 14 1506
½” mNPT ETFE 2 PT8-SS-200-2-TZ14-3.5-9 2 14 5381
½” NPT PTFE 2 PT8-SS-150-1TSP-TEE18-12-12 2 18 2968
3/4″ NPT ETFE 2 PTN12/8-SS-150-2-TZZ18-18-18 5k psi 2 18 5193
1″ NPT PTFE/PVC 2 PT16-SS-150-1TP-TX22S/ANX22-24-120 2 22 3406
¾” NPT 2 PTN12-SS-200-2-8K-24-216 2 8 2243
¾” NPT Polyolefin 2 PTN12-SS-150-2-XLPO12-24-24 2 12 3351
1″ NPT PTFE/PVC 2 PTN16-SS-150-2-PC/TZZ18-1200-24 2 18 3405
1″ NPT TPE 2 PTN16-SS-150-2-Alpha45052-24-24 2 18 2337
1″ NPT nipple 2 PTN16-SS-200-2-TEE10-36-240 2 10 1756
¾” SAE/NPT PTFE 2 SO12/PT12-SS-150-2-TEE18-24-24 2 18 180
¾” SAE PTFE 2 SO12-SS-80-2-TE12-60-60cm 2 12 2297
5/16″ 24 UNF-2A SAE ETFE 2 SO5-AL-150-2-TZ22-4-4 2 22 4388
5/16″ SAE PTFE 2 SO5-SS-150-2-TE26-18-.02 2 26 3272
5/16″ SAE PTFE 2 SO5-SS-150FR-1TP-TE24-12-4 2 24 2031
½” SAE o-ring PTFE 2 SO8-SS-150-1TSP-TE22-36-36 twisted shielded pair 2 22 4495
½” SAE ETFE 2 SO8-SS-150-2-TZ22-18-18 2 22 1652
½” SAE ETFE 2 SO8-SS-150-2-TZ22-72-36 2 22 1652-2
½” SAE PTFE 2 SO8-SS-80-2-TE18-24-24 2 18 2585
½” SAE o-ring PTFE PTFE2 shielded SO8-SS-150-1TSP-TE20-20-20 2 20 3696
½” SAE o-ring seal PTFE 2 SO8-SS-150-1TSP-TE22-36-36 shielded 2 22 4495
½” SAE o-ring seal PTFE 2 SO8-SS-150-2-TE22-24-24 2 22 4557
½” SAE PTFE 2 SO8-SS-80-2-TE22-6-6 2 22 1660
1-1/16″ SAE PTFE 2 SO16-SS-200-2-TEE8-36-18 2 8 2782
1 3/16″ thread o-ring seal PTFE 2 SO19-PS-150-2-TEE6-36-18 2 6 5640
1 pISTON o-ringS,/td> PTFE 2 SP16-E-150-2-TEE10-16-16 2 10 2335
Ferrule PVC 2 SP1TP-U-100-2C-CW3732REV1-.7-96 2 26 2128
5/16″ Piston o-ring PTFE 2 SP5-P-150-2-TE28-6-6 2 28 2591
5/16″ Piston o-ring PTFE 2 SP5-P-150-2-TEE26-15-5ST 2 26 1398
5/16″ piston o-ring PTFE 2 SP5P-E-150-2-XLP22-.3M-.3M 2 22 1877
5/16″ Piston o-ring PTFE 2 SP5-PH-150-2-TE28-6-6 2 28 1712
0.310″ Piston o-ring seal PTFE 2 SP5-P-150-2-TEE26-250-60-250mm double wall seal 2 26 4698
⅜” Piston o-ring ETFE 2 SP6-E-150-2-TZZ24-50-50CM 2 24 3587
⅜” piston o-rings PVC 2 SP6-E-150-2-PC24-12-12 4 24 1546
⅜” Piston o-ring PTFE 2 SP6-E-150-2-TE22-12-12 2 22 2633
⅜” Piston o-ring PTFE 2 SP6-E-150-2-TE22-300-12 2 22 4642
⅜” Piston o-ring PTFE 2 SP6-E-150-2-TE24-40CM-40CM 2 24 1735
⅜” Piston o-ring ETFE 2 SP6-E-150-2-TZ22-6-30 2 22 2771
⅜” Piston o-ring PTFE 2 SP6-E-200-1TP-TE26-6-24 2 26 1598
⅜” Piston o-ring PPE 2 SP6L-E-150-2-mPPE26-96-48 4580
⅜” Piston o-ring PTFE 2 SP6-E-200-2-TE22-3-28 2 22 3780
⅜” Piston o-ring PTFE 2 SP6-E-200-2-24-T 2 24 1847
9.42mm ETFE 2 SP6X-E-200UL94-2-TZ22-10-10 5k psi 2 22 4773
⅜” Piston o-ring PTFE 2 SP6H-E-200UL94-2-TZ26-12-12 25k psi 2 26 4843
3/8″ piston o-ring seal PTFE 2 SP6X-E-200UL94-2-TE26-3-12 10k psi STOCK See Quick Ship List 2 26 3340
3/8″ piston o-ring seal Kapton polyimide 2 SP6X-E-200UL94-2-K28-10-10 10k psi 2 28 5152
.434″ Piston o-ring PTFE 2 SP7L-E-150-2-TEE20-12-12 2 20 1381
½” Piston o-ring PTFE 2 SP8C-E-200UL94-2-TE14-4-10 2 14 4664
½” Piston o-ring PTFE 2 SP8C-E-200 UL94-2-TE18-2-34 2 18 3470
½” Piston o-ring PTFE 2 SP8C-E-200UL94-2-TE18-2-21 hi-test 2 18 3635
½” Piston o-ring PTFE 2 SP8C-E-200-2-TEE18-1-4 See Quick Ship List 2 24 3451
½” Piston o-ring 2 SP8C-E-200-2-TE18-1-34 2 18 20 million pressure cycles! 3485
½” Piston o-ring seal PTFE 2 SP8C-E-200-2-TEE18-3-4 2 18 3578
½” piston o-ring PTFE 2 SP8C-E-200UL94-2-TE18-2-34 2 18 3678
½” Piston o-ring PTFE 2 SP8C-E-200UL94-2-TEE18-2-21 4195
½” Piston o-ring polyamide 2 SP8H-E-200-2-K22-35-6 7k psi 2 22 4347
½” Piston o-ring Sensor 2 SP8HP-E-200-2-TE24-PCB-1 2 18 3396
12,57mm piston o-ring PTFE 2 SP8H-E-200-1-TSP26-180mm-180mm shielded 10k psi 2 26 5243
½” Piston o-ring PTFE foil 2 SP8/83-E-150-2SJ-TE18-12-32 2 18 2055
½” Piston o-ring PTFE foil 2 SP8/83-E-150-2SJ-TEE20-3-32 2 20 0760
½” Piston o-ring PVC 2 SP8L-E-150-2-PC16-4-6 2 16 1368
½” Piston o-ring ETFE 2 SP8L-E-200UL94-2-TZZ18-50cm-200cm 2 18 3713
½” Piston o-ring PVC 2 SP8L-E-150-2-PC18-4/5-10 2 18 1693
½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ16-200-150mm 2 16 2624
½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ16-4-6 2 16 2918
½” Piston o-ring PTFE 2 SP8L-E-80-2-TE16-4-6 2 16 2550
½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ18-4-10 2 18 2620
½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ18-4-20 2 18 2752
½” Piston o-ring ETFE 2 SP8L-E-150-2-TZZ18-6-12 2 18 2390
½” Piston o-ring PVC 2 SP8L-E-80-2-PC18-10-9 2 18 1738
½” Piston o-ring PVC 2 SP8L-E-150-2-PC20-6-6 2 20 3660
12.57mm Piston o-ring PVC 2 SP8L-E-150-2-PC26-5-5 2 26 3813
½” Piston o-ring PTFE 2 SP8M-E-150-2-IPC14-7-7 2 14 4151
½” Piston o-ring PTFE 2 SP8M-E-200-2-EE18-37-12 2 18 3555
½” Piston o-ring polyethelene 2 SP8M-E-150-1TSJP-PE22-297-20 2 22 2131
12,57mm piston o-ring seal Irrad PVC 2 SP8M-E-150-2-IPC14-7-7 2 14 4151
½” Piston o-ring PVC 2 SP8M-E-150FR-2-IPC14-12-12 2 14 1762
½” Piston o-ring ETFE 2 SP8L-E-200UL94-2-TZ14-39-10 2 14 5742
½” Piston o-ring ETFE 2 SP8S-E-150-2-TZ18-18-6 2 18 4536
½” Piston o-ring ETFE 2 SP8S-E-150-2-TZ24-12-12 2.5k psi 2 24 5319
½” Piston o-ring polyethelene 2 SP8S-E-100-2-PE20-20CM-20CM 2 20 1383
½” Piston o-ring polyethelen 2 SP8S-E-150-1TJSP-PE22-306-2 2 22 2177
½” Piston o-ring PTFE 2 SP8S-E-150-2-TE28-6-6 2 28 2058
½” Piston o-ring PTFE 2 SP8S-E-200-2-TE22-8-18 2 22 1977
½” Piston o-ring PVC foil 2 SP8S-E-80-1TSJP-PC22-120-3 2 22 1874
14.12mm Piston o-ring PTFE 2 SP9-E-200-2-TEE12-4-4 2 17 3528
14mm Piston o-ring PTFE 2 SP9.3/4.6-E-150-2-TE14-2-38 2 14 4966
14mm piston o-ring seal ETFE 2 SP9-E-200UL94-2-TZ16-6T-5T 2 16 5603
9/16″ piston o-ring ETFE 2 SP9-E-150-2-TZ16-8-6 See Quick Ship List 2 16 3656
½piston o-ring ETFE 2 SP9-E-200UL94-2-TZ16-6T-5T 2 16 4350
14mm piston o-ring seal PTFE UL1659 2 SP9-E-200UL94-2-PTFE16-6T-5T 16 4618
piston o-ring PTFE 2 SP11M-E-200-2-TZ22-6-12 2 22 3581
17.4 mm piston o-rings ETFE 2 SP11M-E-200-2-TZZ10-24-24 2 10 5557
17.37mm piston o-ring ETFE 2 SP11M-E-150-2-TZ14-24-24 2 14 4493
17.37mm piston o-ring ETFE 2 SP11S-E-200-2-TZ22-6-17 2 22 4544
17.46mm piston o-ring PTFE 2 SP11/10-E-200UL94-2-TEE18-1-4 wire splice joint double seal 2 18 4218
¾” Piston o-ring PVC 2 SPF12-E-150-2-PC12-12-12 2 12 2524
½” Piston o-ring PTFE 2 SPF7.5-PH-150-2-TE18-5-12 2 18 1673
27,79mm piston o-ring GXL 2 SPF14-E-150-2-GXL12-39-16 2 12 5177
27,49mm GXL 2 SPF14-E-150-2-GXL12-33T-13T 2 12 5871
27,49mm piston o-ring GXL 2 SPF14-E-150-2-GXL12-32-60 2 12 4841
1″ piston o-ring seal silicone hi-flex 2 SP16-E-150-2-S8-14-20 2 8 5125
.217″ Piston o-ring PTFE 2 TP2-E-150-2-PC30-4-4 2 30 2033
¾” o-ring face seal PTFE 2 VS12-SS-150-2-EE24-24-varian 103488001 2 24 3588
½” o-ring face seal ETFE 2 VS12-AL-200-2-TZ14-12-24 2 14 3877
¾” o-ring face seal PTFE 2 VS12L-SS-150-2-TE12-36-36 2 12 2725
¾” o-ring face seal PTFE 2 VS12L-SS-80-1TSP/2P-TE16/KT27-6-6 2 16 2381
⅞” o-ring face seal Tubing 2 VS14-B-150-1/1-TUBE/TUBE-36-X probe 2 2215
1″ o-ring face seal Fiber opt 2 VS15L-SS-150-1-PROFIBUS/DP-3M-3M 2 22 2955
1 ¼” o-ring face seal PVC 2 VS18S-SS-150-2-PC8-10-9 2 8 2090
½” o-ring face seal PVC 2 VS8-B-80-2-UL1061-230M-160M UL1061=PC28 2 22 1697
½” o-ring face seal PTFE 2 VS8-SS-200FR-1TSJP-2FEP22-6-31 2 22 1397
½” o-ring face seal PVC 2 VS8-SS-80-2-PC26-12-4 2 26 1172
½” o-ring face seal PTFE 2 VS8-SS-80-2-TEE18-30-40CM 2 18 1805
