Mcallister真空样品台BLT86 8″ (CF150) Z Translator Inch and Metric Scale Available Dimensions are in inches (mm)
Product Description

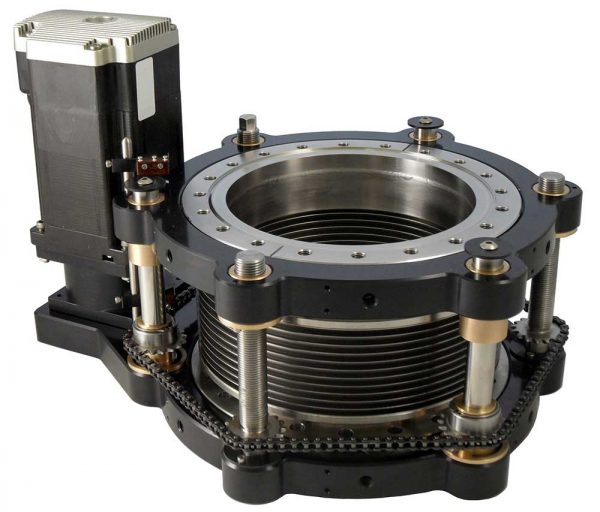

All BLT86s use double ball bearings on the jacking screws. The screws and bearings are lubricated with high temperature grease for low friction and long life. All parts are field replaceable. The traveling flange is supported by three jacking screws and aligned by three guide rods and actuated with an included ratchet wrench. All translators are also available with long strokes, motor drives, linear encoders, tapped flanges and special heights.
Model BLT86 Translator Dimensions |
||||
|---|---|---|---|---|
| Model | Stroke | OAL Compressed | ||
| BLT86-2 | 2″ (50) | 3.6″ (91) | ||
| BLT86-3 | 3″ (75) | 3.76″ (96) | ||
| BLT86-4 | 4″ (100) | 3.93″ (100) | ||
| BLT86-6 | 6″ (150) | 4.26″ (108) | ||
| BLT86-8 | 8″ (200) | 4.59″ (117) | ||
| BLT86-10 | 10″ (250) | 4.92″ (125) | ||
| BLT86-12 | 12″ (300) | 5.25″ (133) | ||
| Clear ID 5.87″ (149) | ||||
