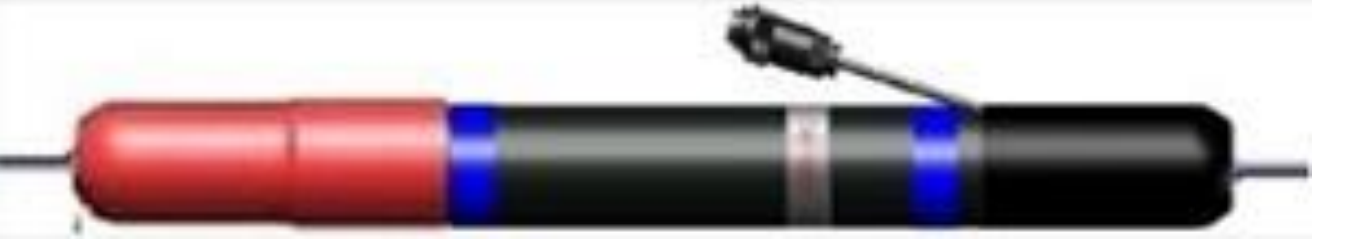

Winkler AG WAMX2495-230PK006-0300S2XX 加热线
Heated line for engine and dynamometer test beds
Operating voltage 230 VAC; Nominal Power 100 W/m (+10%/-5%);
Max. admissible operating temperature 200°C;
Sensor Pt100 + thermocouple type K (NiCr-Ni);
Nominal diameter DN 6; Length 3,00 m;
Max. admissible operating pressure 10 bar;
Outer diameter (OD) approx. 45 mm.
Our information
Heated analysis line according to the following structure:
> Basic PTFE hose DN 6 with 1-layer metal lapping
> Fitting; on both sides pipe socket type RSL, DA8 / LA25 mm, material 1.4571
> Fluoropolymer insulated heating conductor, moisture-proof with protective conductor braiding
> Sensors: 1x type K (Ni-CrNi) + 1x PT100 in 2-wire technology sensors: Installation 300 mm from the E-side
> Thermal insulation; Thermofleece
> Outer cover; Co-extruded silicone foam hose black
> An u. Graduation: E-side silicone end cap, A-side anti-kink cap (47 mm max.)
> Power and sensor cable are led out together to the middle of the hose
(type 3),LL = 1500 mm, silicone protection hose, multipolar plug 7pol (incl. PE) / 10A;
Pin assignment: 1 = L, 2 = NiCr-Ni: plus (+); 3 + 4 = PT100, 5 = NiCr-Ni minus (-); 6 = N, 7 = PE
