Silicon Drift Detector (SDD) high detection efficiency 大面积SDD

To increase the detector collection efficiency, PNDetector developed different SDD sensors with large detection areas and optimized geometries. With our unique and unrivalled designs solid angles exceeding 1 sr can be achieved with single channel SDDs. 为了提高探测器的收集效率，PNDetector开发了具有大探测面积和优化几何形状的不同SDD传感器。凭借我们独特而无与伦比的设计，单通道SDD可以实现超过1 sr的立体角。

Large areas - great efficiency

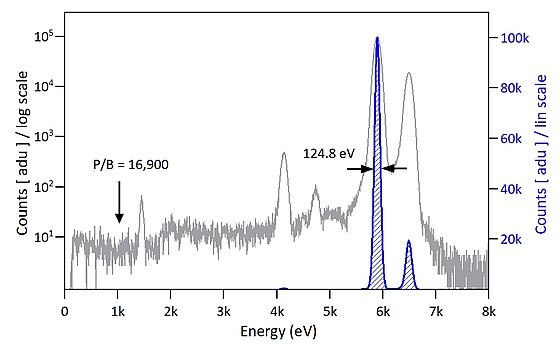

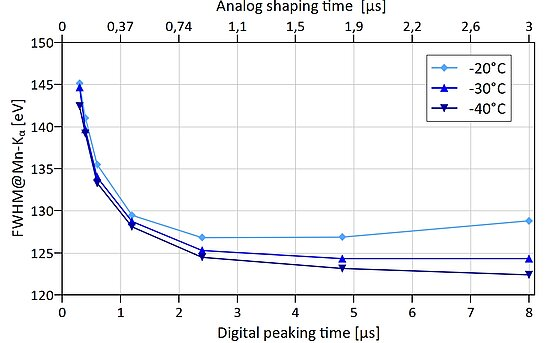

Excellent energy resolution down to 125 eV @ −30 °C or 123 eV @ −40 °C

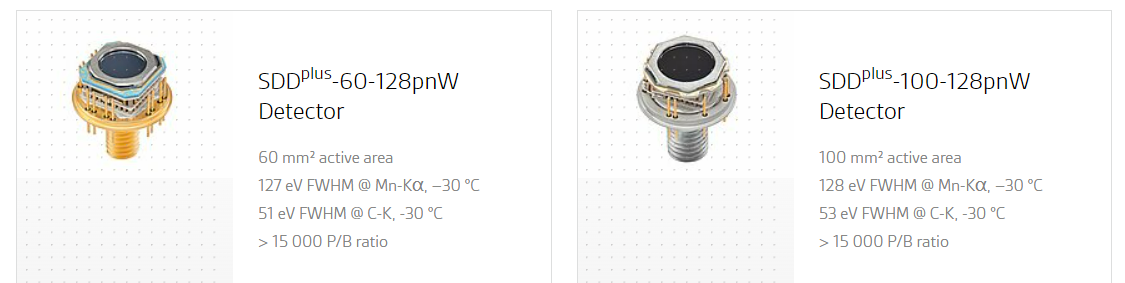

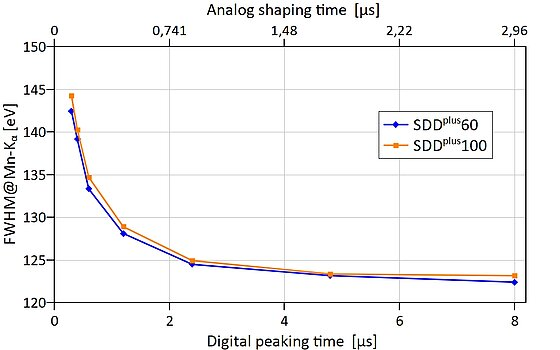

The superior energy resolution enables light element detection down to Lithium even with 100 mm² SDDs

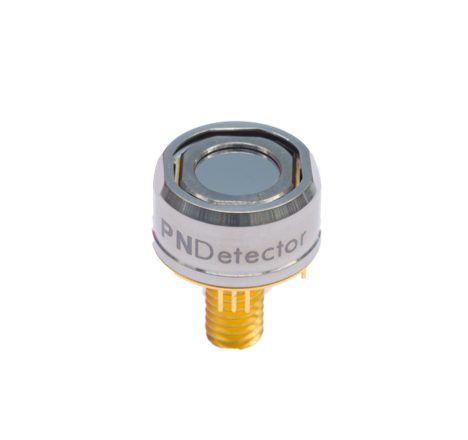

Due to our long lasting experience in packaging, we can offer extremely compact and application-oriented module packages, with chamfered caps
Small modifications can lead to big changes – to achieve the best fit request a proposal for a customized solution tailored to your system

大面积-高效出色的能量分辨率，在−30°C时可降至125 eV或在−40°C时降至123 eV 卓越的能量分辨率可实现低至锂的轻元素检测，即使使用100 mm2 SDD 由于我们在包装方面的长期经验，我们可以提供极其紧凑和面向应用的模块包装，带有倒角盖小的修改可能会带来大的变化——为了达到最佳效果，请提出针对您的系统定制解决方案的建议
