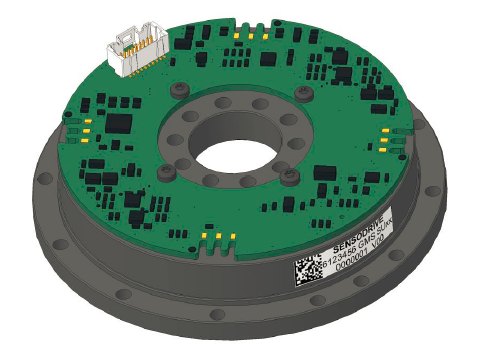

SENSODRIVE GmbH Torque Sensor GMS SU75 扭矩传感器 6000735
由以下组成:
·无刷直流电机
·高分辨率编码器, 带 8192 cnts./转 (带指数信号的增量)
·基于 dsp 的电机控制器
·连接器集
通过 CAN 的模拟接口
·实际位置
·所需扭矩, 实际扭矩 (根据电机电流计算)
·摩擦
·阻尼
·模拟机械停止
·弹簧刚度 (线性特性)：
diameter: 74.8mm
height:25.2mm
rated torque: 9Nm
maximum torque:11Nm
Limiting torque:28Nm
Peak structr\ural torque: 54Nm
Torsional: Stiffness
Accuracy at 25°C: 2% of Rated Torque
Resolution: 16 bit
Acceptable Offset: 1% of rated torque (to be adjusted if exceeded)
Maximum Offset: 10% of rated torque (must not be exceeded)
Bandwidth ≥ 1 kHz
Operating Temperature 0°...80°C
Storage Temperature -40°...105°C
Humidity 20 … 80 % (non-condensing)
Air Pressure 600 … 1060 hPa
Pollution Max. Pollution degree 1 according to IEC 61010
Lifetime
10 years or 3∙107 load cycles at 2/3 of rated torque or 3∙103 load cycles at limiting
torque, whichever is reached first.
Resolution: 16 bit
Acceptable Offset: 1% of rated torque (to be adjusted if exceeded)
Maximum Offset: 10% of rated torque (must not be exceeded)
Bandwidth ≥ 1 kHz
Operating Temperature 0°...80°C
Storage Temperature -40°...105°C
Humidity 20 … 80 % (non-condensing)
Air Pressure 600 … 1060 hPa
Pollution Max. Pollution degree 1 according to IEC 61010
Lifetime
10 years or 3∙107 load cycles at 2/3 of rated torque or 3∙103 load cycles at limiting
torque, whichever is reached first.
• motor flange• stand for development and setup
• motor flange
SENSO-Wheelincludes a program for testing the
SENSO-Wheel
