Allen Avionics视频隔离变压器VIT-75-5R
5个视频隔离变压器，采用薄型机架安装封装 这些75欧姆的视频隔离变压器可承受500伏以上的直流电压，具有20Hz至4.5MHz、20Hz至6Mhz的平坦频率响应。

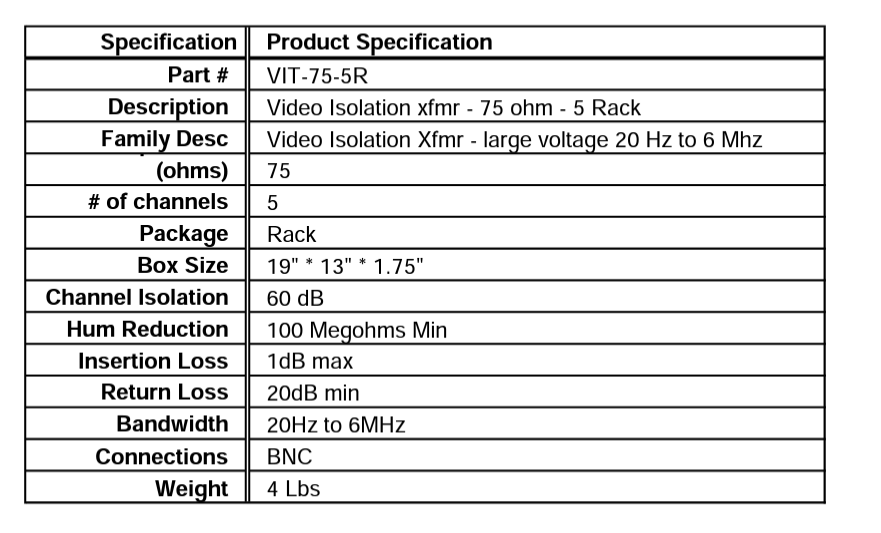

Product Specifications
| General Parameters: | |
|---|---|
| Connectors: | BNC |
| Impedance: | 75 Ohms |
| Bandwidth: | 20Hz to 6MHz |
| Ground loop Isolation: | 60 dB |
| Return Loss: | 20dB min |
| # of channels: | 5 |
| Hum Reduction: | 100 Megohms Min |
| Insertion Loss: | 1dB max |
| Package: | Rack |
| Box Size: | 19" * 13" * 1.75" |
| Weight: | 4 Lbs |
询价采购Allen Avionics视频隔离变压器VIT-75-5R
请用微信扫描下方二维码或手动添加微信号2351992198
