Packworld PW5000系列脉冲热密封机

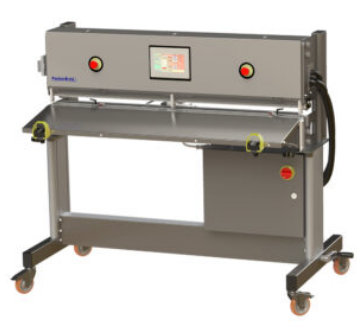

PW5000系列机器有36”、48”、60”和72”的密封长度。这些机器具有从前到后、从侧到侧的贯穿式密封能力,具有C形框架。可调节支架可增加便携性并改善人体工程学。可选择真空和吹扫、飞刀功能和行李担架。所有PW5000系列机器都可根据ISO 11067-2进行验证。触摸屏机器提供额外的功能,包括符合21 CFR第11部分。 PW5536、PW5548、PW5560和PW5572直通式触摸屏热封机 这种具有TOSS触摸屏控制的多功能脉冲式热封器提供了温度/时间/压力的图形显示,具有各种时序可能性和视觉/听觉警报。时间、温度和压力可编程,冷却循环由时间或温度控制。过程控制是实时显示的。通过菜单驱动的单点触摸过程,验证比以往任何时候都更容易。
极致的热封简约 PW5500系列提供清洁、持续可靠和可重复的密封。它非常适合热封塑料薄膜和可热封复合材料。 建议用于洁净室或生产地板,用作全宽袋子、袋子或卷材热封器。采用坚固的管状钢框架、抛光不锈钢盖和工作表面。 Packworld的卓越性能来自于我们独有的TOSS技术和先进的PIREG®温度控制-最佳密封系统。每次热封后,它都能提供一致且可重复的结果。 触摸屏精密热封控制 多功能高级PIREG®脉冲热密封控制器提供菜单驱动的时间/温度曲线的数字显示,具有各种时序可能性。时间和温度可通过键盘编程,冷却循环由时间或温度控制。实际温度实时显示且可重复。根据需要的结果,机器可以安装300多种不同的TOSS Alloy-20®-C散热带或电线中的任何一种。 可选刀具切割系统 该刀使医疗器械制造商能够在消毒后将医疗袋密封和切割过程结合到一个步骤中。热封器包括切割刀,用于从密封袋中修剪头部或多余材料。 触摸屏功能带多点校准的AUTOCAL(自动零点校准)•配方存储•可重新设置的密封计数器•图形温度显示•报警诊断•密码保护•看门狗监测在空闲时检查温度。Models | PW5536, PW5548, PW5560, & PW5572 |
Applications: | Medical Devices • Pharmaceuticals • Web Sealers • Fabric, Shade and Curtain Sealer • Large Product Packaging • Samples • Research & Development • Electronics |
Features: | TOSS TouchScreen Menu driven • Watchdog monitoring system • Remote access to control panel and alarms • Data Capture • Selectable Temperature, 0 - 300°C • High/Low Temperature Alarm and Lock-Out • Adjustable Heat Seal Pressure • High/Low Heat Seal Pressure Alarm • Self Diagnostics • Auto-Calibration • Stainless Steel construction • Single or double band heatseal operation • Emergency stop button • Foot Pedal Activation |
Benefits: | Calibration made simple • Easy change over of heatseal bands • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured |
Options: | NIST traceable calibration • Adjustable Table for product placement • Jaw modifications for water cooling • High Temperature Application Set-up • CE Compliance • Automatic Knife • Cutting System • Automatic Vacuum and Purge System • Aluminum Adjustable Height Stand |
Standard Features | Heat Seal Length: 36, 48 and 60 Inches • Heat Seal Width: 2 - 10 mm • Temperature Range: 0 - 300°C (500°C optional) • Timers: 0.1 - 98.9 Sec • Power: 230 VAC, 50/60 Hz • Air Pressure: 80 - 100 psig • 3 Sizes: 36" - 42" x 31" x 50" • 48" - 55" x 31" x 50" • 60" - 66" x 31" x 50" |
Options | Adjustable Stainless Steel Stand • Stainless Steel product table • Water-cooled Jaws • NIST Traceable certification • CE Compliant |
Specifications | Heat Seal Length: 24 and 36 Inches • Heat Seal Width: 2 - 10 mm • Temperature Range: 300°C - (Optional 500°C) • Timers: 0.1 - 98.9 Sec • Power: 115 or 230 VAC 50/60 Hz • Air Pressure: 80 - 100 psig |
Models | PW5136, PW5148, PW5160, & PW5172 |
Applications: | Medical Devices • Pharmaceuticals • Web Sealers • Fabric, Shade and Curtain Sealer • Large • Product Packaging • Samples • Research & Development • Electronics |
Features: | Menu Driven Micro-Processor • Selectable Temperature, 0 - 500°C • High/Low Temperature • Alarm and Lock-Out • Adjustable Heat Seal Pressure • High/Low Heat Seal Pressure Alarm • Self Diagnostics • Auto-Calibration • Digital Air pressure regulator, gauge and Hi/Lo alarms • Stainless Steel construction • Single or double band heatseal operation • Emergency stop button • Foot Pedal Activation |
Benefits: | Calibration made simple • Easy change over of heatseal bands • Precise and repeatable heat sealing control • Ease of operation • Adaptable to a wide variety of uses • Maintenance Free • Safety Assured |
Options: | Data Capture with USB connection and PC Software• NIST traceable calibration • Adjustable • Table for product placement • Jaw modifications for water cooling • High Temperature • Application Set-up • CE Compliance • Automatic Knife Cutting System • Automatic Vacuum and Purge System • Aluminum Adjustable Height Stand |
Standard Features | Heat Seal Length: 36, 48, 60 and 72 Inches • Heat Seal Width: 2 - 10 mm • Temperature Range: 0 - 500°C • Timers: 0 - 99.9 Sec • Power: 230 VAC, 50/60 Hz • Air Pressure: 80 - 100 psig / 3 Sizes: • 36" - 42" x 31" x 56" • 48" - 55" x 31" x 56" • 60" - 66" x 31" x 56" |
Options | Adjustable Stainless Steel Stand • Stainless Steel product table • Water-cooled Jaws • NIST Traceable certification • CE Compliant |
Specifications | Heat Seal Length: 24 and 36 Inches • Heat Seal Width: 2 - 10 mm • Temperature Range: 300°C - (Optional 500°C) • Timers: 0.1 - 98.9 Sec • Power: 115 or 230 VAC 50/60 Hz • Air Pressure: 80 - 100 psig |
