Volpi视觉光源Volpi冷光源Volpi卤素光源Volpi CIS同轴照明系统

Volpi的同轴照明系统（CIS）具有绝对均匀的光场，特别适合于照明反射和反射表面。在这些紧凑型模块中，光在整个表面上生成，并在相机的视场中通过分束器反射。CIS 直接安装在摄像机镜头下方或要观察的物体上方。结果，相机看起来与物体上的光线平行，该光线漫射且非常均匀被照亮。记录的图像更均匀，更详细，并且可以进行更好，更快，更无错误的评估，以进行图像处理。用于平面镜面成像的表面同轴照明。有白色、红色和红外线发光二极管有白色、红色和红外线发光二极管紧凑，轻量和可靠的模块，适用不同的标准尺寸 Shadow-free同轴照明特殊镀膜镜面防护玻璃(CIS 150/150可选)

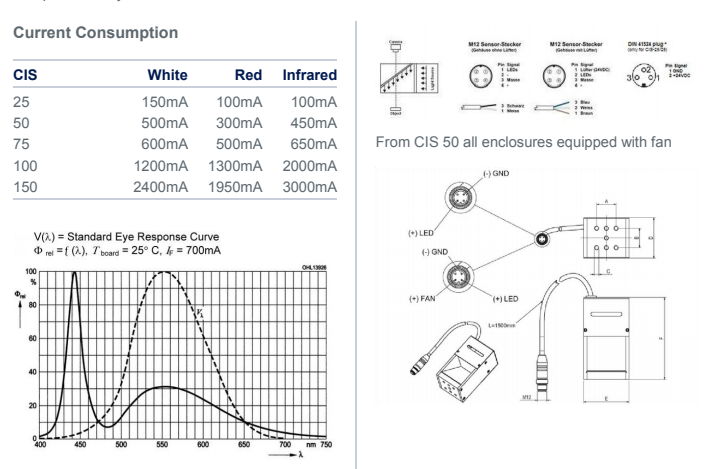

技术参数

Optical features Light emitting diodes (LED) white: 7800K, red: 623nm, infrared: 875nm Light emitting surface (area) 25 x 25mm / 50 x 50mm / 75 x 75mm 100 x 100mm / 150 x 150mm Average LED lifetime* white: 30.000h / red, IR: 70.000h LED radiation class 1 Electrical Characteristics Supply Voltage Vs 24 V DC Connector M12 male; 4 poles / DIN 41524 plug (only CIS-25) Mechanical Characteristics Enclosure Aluminium body, black anodized, IP20 MPG mirror protection glass Camera side Ambient Conditions Ambient temperature Operating: 0Â°C - 40ÂºC / Storage: 0ÂºC - 50ÂºC Humidity Max. 95%, relative, no condensing

CIS-25/25, white, 24VDC * (DIN 41524) 76402.000 CIS-25/25, red, 24VDC * (DIN 41524) 76402.600 CIS-25/25, infrared, 24VDC * (DIN 41524) 76402.750 CIS-50/50, white, 24VDC 76507.000 CIS-50/50, red, 24VDC 76507.600 CIS-50/50, infrared, 24VDC 76507.750 CIS-75/75, white, 24VDC 76508.000 CIS-75/75, red, 24VDC 76508.600 CIS-75/75, Infrared, 24VDC 76508.750 CIS-100/100, white, 24VDC 76509.000 CIS-100/100, red, 24VDC 76509.600 CIS-100/100, Infrared, 24VDC 76509.750 CIS-150/150, white, 24VDC 76576.000 CIS-150/150, red, 24VDC 76576.600 CIS-150/150, Infrared, 24VDC 76576.750 Mirror Protection Glass for CIS 25/25 16402.011 Mirror Protection Glass for CIS 50/50 16507.011 Mirror Protection Glass for CIS 75/75 16508.011 Mirror Protection Glass for CIS 100/100 16509.011 Mirror Protection Glass for CIS 150/150 16576.007 Trans reflex beam splitter for CIS 25/25 16402.015 Trans reflex beam splitter for CIS 50/50 16507.015 Trans reflex beam splitter for CIS 75/75 16508.015 Trans reflex beam splitter for CIS 100/100 16509.015 Trans reflex beam splitter for CIS 150/150 16576.013
