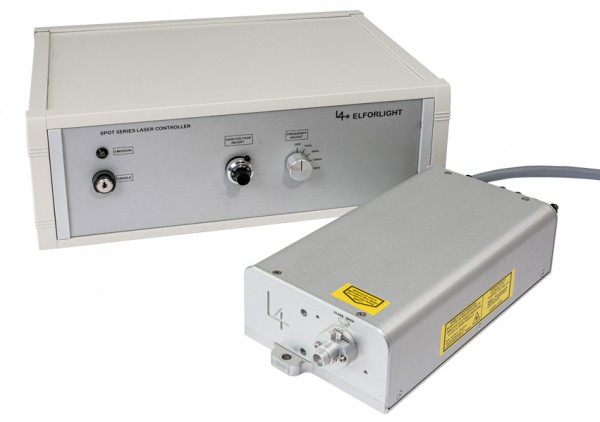

Elforlight Ltd Elforlight lasers SPOT-10-200-532 激光器
Wavelength：532nm
Maximum Pulse Energy：20μJ
Minimum Pulse Width：< 1.8ns
Repetition Rate：Single shot to > 50kHz
Jitter：< +/- 1ns from external trigger input (typ.0.5ns)
Power Stability：<+/- 2 % over 8 hours
Spatial Mode：TEM00, M2 < 1.1
Beam Diameter：~ 1mm
Operating temp.：10-35 deg. C
Laser Head Size：220mm long x 122mm x 60mm
Controller Size：350mmx 260mm x 120mm
Frequency Control：TTL trigger input required at up to 50khz
Cooling：Air cooled
Power requirement：100 - 240 VAC, 50 / 60 Hz Max 100W
