Winkler AG 4,35 m BEMG2C34#1K0P0000 加热线

Heated line economy series

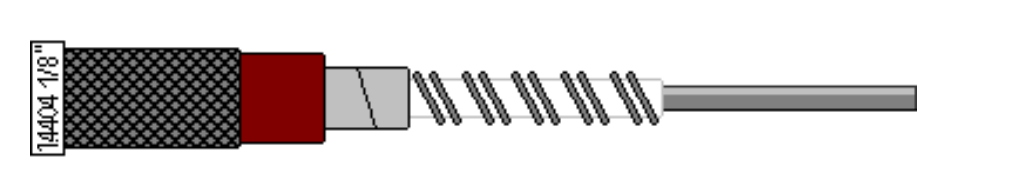

composed of:

Outer cover "G2": black polyamide (PA6) braiding (OD ~43 mm).

Thermal insulation: thermal fleece (Tmax 200°C) / glas silk (Tmax 250°C) and

silicone foam.

Heat tracing "C34": Fluorpolymer insulated heating cable 230 VAC (+/-10%)

humidity-proof with protective braiding.

125 W/m constant power. Tmax 250°C (power ON/OFF).

Max. lengths of heating circuit:

18,4 m (10 A, 2.300 W); 29,4 m (16 A, 3.680 W)

36,8 m (20 A, 4.600 W); max. 41,2 m (22,37 A, 5.145 W)

Line canNOT be cut to length! A controller is required.

Inner line "1K0P": 1 x stainless steel, seamless, soft annealed, 1.4404 (AISI

316 L).

NON-interchangeable, 1/8" OD
