SDD system: XRS： The XRF Spectrometer for science and lab 用于科研和实验室的XRF光谱仪

The XRS is the operation platform for our SDD Modules and supports the full functionality of our Complete or Standard Module series. It is designed for applications in microanalysis and in X-Ray Fluorescence (XRF) analysis in laboratories and industry. Individually pre-adjusted system parameters combined with the right selection of the SDD module type lead to optimum performance and reliability in the specific field of application.

XRS是我们SDD模块的操作平台，支持我们完整或标准模块系列的全部功能。用于实验室和工业中的微量分析和X射线荧光（XRF）分析。单独预调整的系统参数与正确选择SDD模块类型相结合，可在特定应用领域实现最佳性能和可靠性。

Key Features

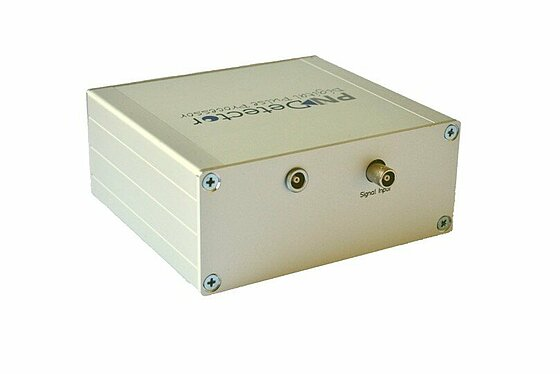

High resolution detector system for use with Digital Pulse Processor (DPP) or analogue shaper

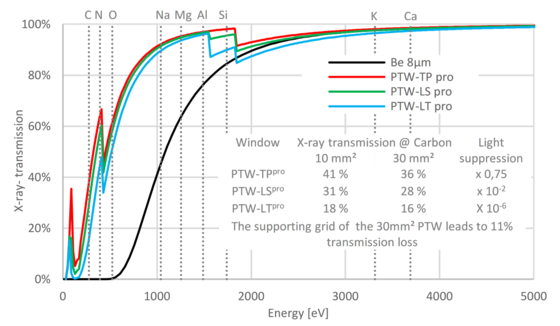

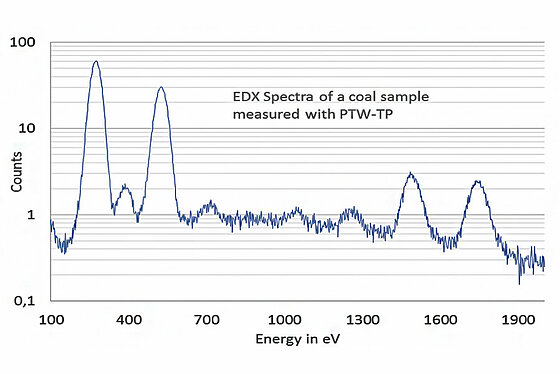

XRF window options Open Module (OM), Ultra Thin Window (UTW), Beryllium or Planar Thin Window (PTW) for light element detection down to Lithium

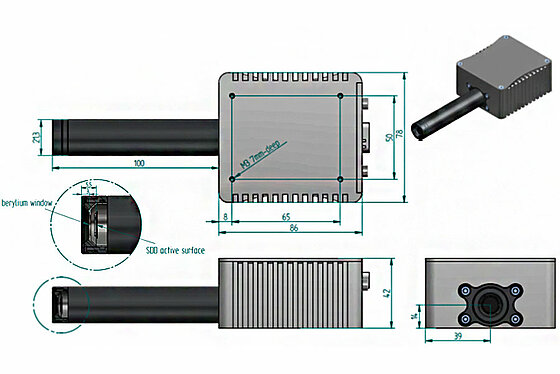

Vacuum tight detector snout for easy adaption on vacuum chambers
Second Peltier for improved heat dissipation at higher temperatures

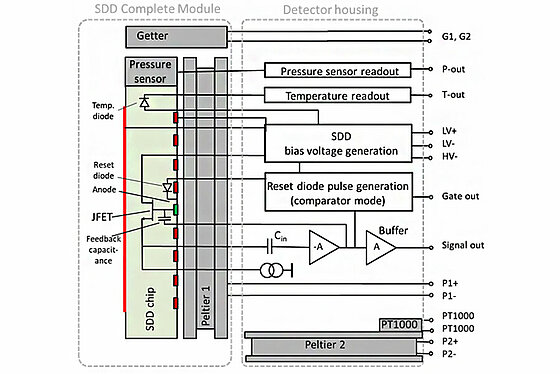

Pressure and temperature monitoring for completely controllable SDD module conditions and Getter reactivation option for extension of module vacuum life time

主要功能与数字脉冲处理器（DPP）或模拟整形器一起使用的高分辨率探测器系统 XRF窗口选项开放式模块（OM）、超薄窗口（UTW）、铍或平面薄窗口（PTW），用于锂等轻元素检测真空紧密型探测器鼻，可轻松适应真空室珀耳帖可在更高温度下改善散热效果用于完全可控SDD模块条件的压力和温度监测，以及用于延长模块真空寿命的Getter重新激活选项
