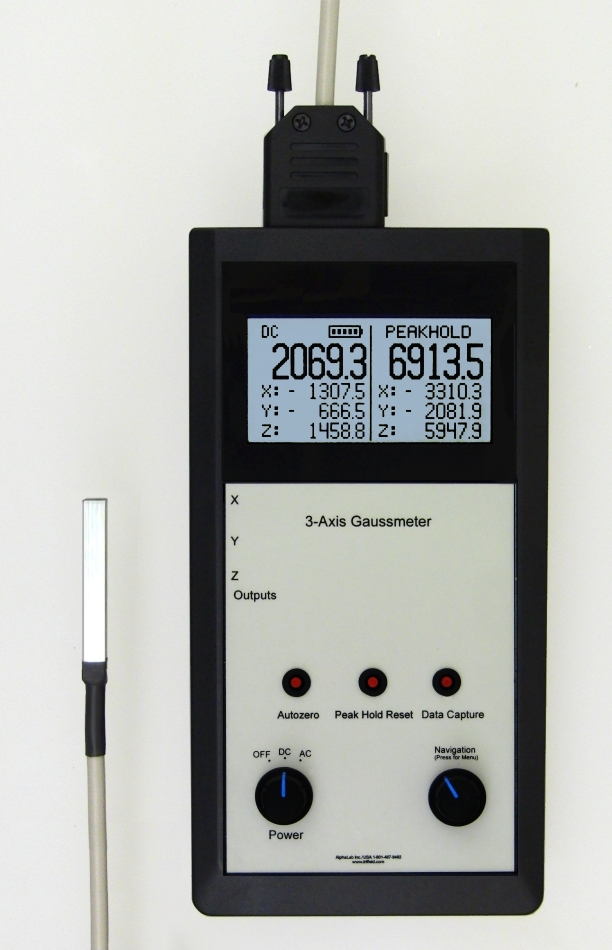

AlphaLab, Inc. 3-axis DC/AC Gaussmeter GM3 with HS Probe 高斯计 GM3 (with HS Probe)
Range/Resolution (HS Probe): 0-799.99G / 0.01G indicates polarity
Accuracy (w/ probe) 16° to 29°C: 1% of DC reading / 3% AC +/- 10 Counts / 1% peak hold
Accuracy (w/ probe) -4° to 65°C: 2% of DC reading / 4% AC +/- 10 Counts / 2% peak hold
AC Frequency Range: 45-800 Hz; 3 dB limits are 11 to 1500 Hz.
Peak Hold Speed: 2 millisec pulse is 71%, 5+ millisec pulse is 100%±1%
Output Type: Analog DC Signal.
Output Magnitude (ST Probe): Below 20kG, output is 0.1mV/G. Above 20kG, it is 0.01 mV/G
Output Magnitude (HS Probe): 1mV/G
Meter Size: 5.2 x 3.6 x 1.6 inches; 138 x 91 x 41 mm
Probe Size: .25 x .25 x 1.5 inches
Weight: 7.5 oz
Battery: 9 volt alkaline (~40 hour life with ST probe, ~ 20 with HS probe); "Low Battery" indicator
Sensor Alignment: Within 1 degree
