Silicon Drift Detector (SDD) for Industry-Specific Needs: High throughput is the major goal 针对行业特定需求：高通量
Silicon Drift Detector (SDD) for Industry-Specific Needs: High throughput is the major goal 针对行业特定需求：高吞吐量 Our High-Flux SDD Modules with ASIC preamplifier are the perfect solution for any application where high count rate performance is the major goal. Due to the extremely low leakage currents levels of PNDetector‘s SDD fabrication, we are happy to provide the best energy resolution of SDDs with ASIC preamplifiers on the market. They are the perfect candidate for demanding industrial customers. 我们的带ASIC前置放大器的高通量SDD模块是以高计数率性能为主要目标的应用程序的完美解决方案。由于PNDetector的SDD制造具有极低的泄漏电流水平，我们很高兴在市场上提供具有ASIC前置放大器的SDD的最佳能量分辨率。
Best SDDs with ASIC at All Operating Temperatures
-
Excellent energy resolution down to < 124 eV FWHM @ Mn-Kα at optimum processing time
-

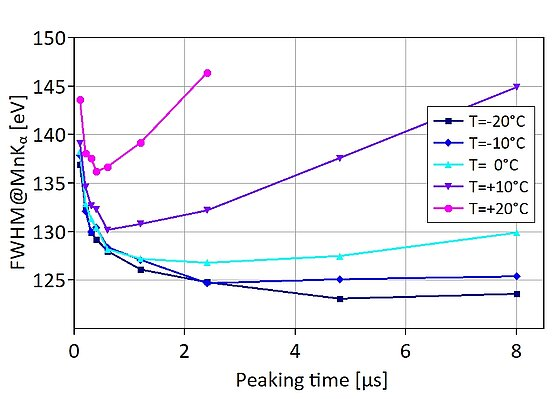

Extreme high temperature performance with resolution values < 135 eV at 22°c chip temperature
-

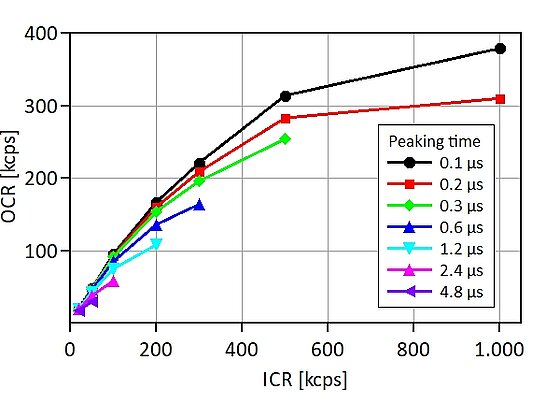

High throughput with minimum dead time due to the fast ASIC
-

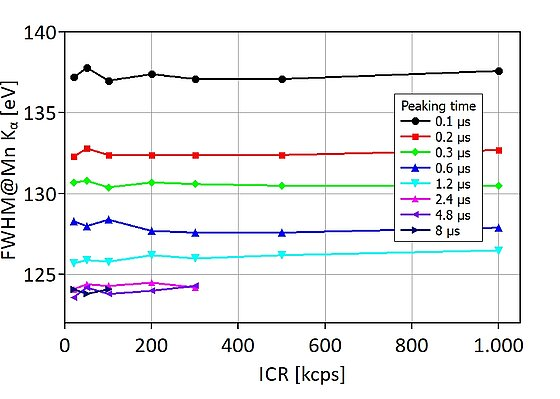

Best energy resolution down to 132 eV FWHM @ Mn-Kα available for small peaking times 0.2µs and high count rates 1Mcps (ICR)
