cmc Instruments GmbH Nitrogen Generator NGM-33 氮气发生器
Nitrogen Generator NGM LC-MS

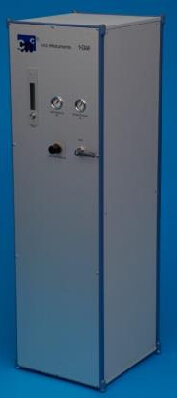

Nitrogen Generator NGM-33
air-inlet-pressure : 7 – max. 10 bar
pressure drop : 0.1 bar
Max. Purity of nitrogen : max. 99.7% - 95%
Max. flow : 33 l/min - max. 120 l/min
Guaranteed dew point : - 55 °C
Rec. ambient temperature : +5 °C….+ 35 °C
Particles > 0,01 μm : none
Power supply : system works without voltage
Dimensions : 40 x 40 x 120 cm
Air consumption : approx. 230 l/min.
(for N2 Generation and Source/Exhauste Air demand),
@ 7,5 bar (dew point max. +5°C)
Connections : compressed-air inlet (hose coupling 13mm)
4 outlet 1/4” (curtain)
4 outlet 1/4” (source)
4 outlet 1/4” (exhaust air)
for use with 3 API 4000 and 1 API 5500 LC-MS from Sciex
