Mcallister真空样品台BLT27C

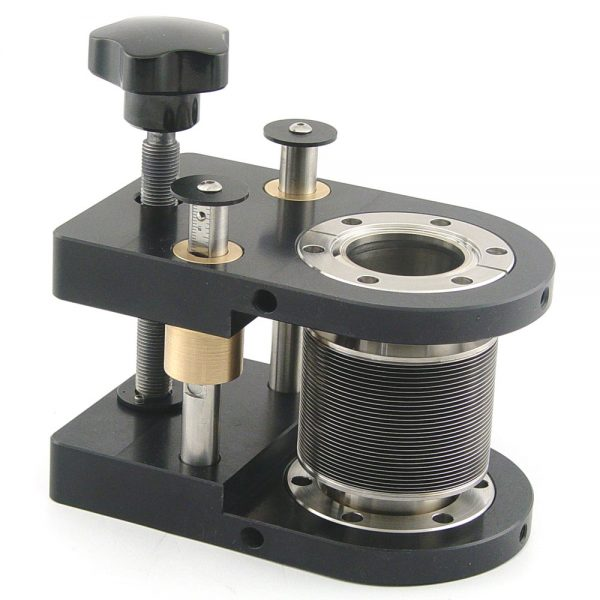

Mcallister真空样品台BLT27C 2.75″ (CF40) Z Translator Inch and Metric Scale Available Dimensions are in inches (mm)

Product Description

The BLT27C has cantilevered flange supports with wraparound flange brackets. A total of six locking screws (three for each flange) hold the flanges within the brackets. The advantage of this design is that these screws can be loosened, even while the translator is installed, and the actuator portion of the translator can be re-positioned radially around the flange. This allows positioning of the BLT to clear things like ion guns and other equipment. Another feature of this translator is that the guide rods and actuation screw are set back from the flange to give maximum access to the flange bolts. The BLT27C will provide years of trouble-free service, if simple maintenance is performed. All BLT ball bearings are lubricated with high temperature grease for low friction and long life. All parts are field replaceable. All translators are also available with long strokes, motor drives, linear encoders, tapped flanges and special heights.

Model BLT27C Translator Dimensions
Clear ID 1.53″ (38)
Model	Stroke	Compressed Height
BLT27C-2	2″ (50)	2.6″ (66)
BLT27C-3	3″ (75)	2.75″ (70)
BLT27C-4	4″ (100)	2.9 ” (74)
BLT27C-6	6″ (150)	3.20 ” (81)
BLT27C-8	8″ (200)	3.5 ” (89)
