Weimer Messtechnik GEPARD15-M4cylindric system 100

Weimer Messtechnik GEPARD15-M4cylindric system 10020800

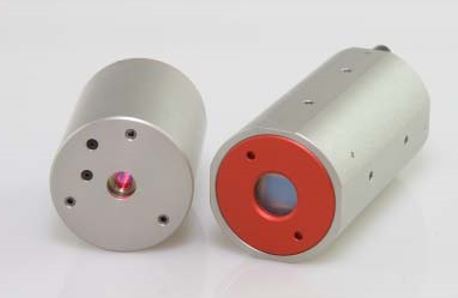

consisting of:

GEPARD-M4cyl LASER transmitter, with precise aligned optical/mechanical laser beam (< 0.1mrad),
fiber-coupled red laser (approx. 635nm), perfectly round laserbeam diameter 5mm.
Power supply with NiMH rechargeable battery (1 x LR6/AA; operation time >10h).
The housing is made of Inox (1.4305: stainless and very durable)
Dimensions (cyl.): Diameter = 50h6mm / L = 71 mm.

GEPARD15-M4cyl receiver with a measuring range of 15x15mm, precisely centered positionsensor (incl. el. compensation).
Signal processing with integrated DSP.
Data transmission to PC with Bluetooth wireless technique (2.4GHz / 100m) or optional with fiber optics to USB.
Powered by NiMH rechargeable battery (2 x LR6/AA; operation time > 24h) or optional by power adaptor 115230VAC.
The housing is made of Inox (1.4305: stainless and very durable).
Dimensions: (cyl.): Diameter = 50h6mm / L = 71 mm.

WIN-GEPARD software package:
 Straightness
 Position
 Manual (pdf-format)

IR-remote control to activate the measurings.
Bluetooth-adaptor to USB for PC (2.4GHz / 100m).
Aerial 2.4GHz for GEPARD receiver.
NiMH spare battery for transmitter/receiver.
Battery charger (115-230V/50-60Hz) for NiMH batteries.
Manual GEPARD (.pdf-format).
Calibration protocol.
GEPARD hard-shell carrying case.
