美国AC Photonics Inc. 分路器 PLC分路器 平面光波导分路器 PLC分配器模块和机架

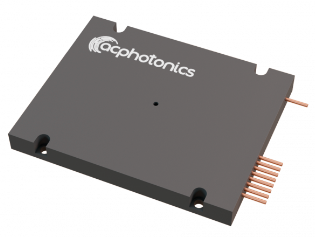

PLC分配器模块和机架
特性 低插入损耗 低PDL 优异的环境和机械稳定性 符合Telcordia GR-1221和GR-1209标准 应用程序 FTTX (fttp, ftth, fttn, fttc) 无源光网络(PON) 局域网(LAN) 有线电视 测试设备 产品规格Parameter | Unit | Specifications | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Operating Wavelength | nm | 1310±40 or 1550±40 or 1260 ~ 1650 | |||||||||||
Type | dB | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 |
Insertion loss (max) * | dB | 4.0 | 4.3 | 7.3 | 7.6 | 10.8 | 11.2 | 13.8 | 14.5 | 17.2 | 18.2 | 20.5 | 21.0 |
Uniformity * | dB | 0.6 | 0.8 | 0.8 | 1.0 | 1.0 | 1.5 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | 3.0 |
PDL** | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.2 | 0.3 | 0.3 | 0.4 | 0.3 | 0.4 | 0.3 | 0.4 |
Return Loss* | dB | ≥ 50 | |||||||||||
Directivity * | dB | ≥ 55 | |||||||||||
Optical Power | mW | ≤ 300 | |||||||||||
Operating Temperature | °C | - 40 to +85 | |||||||||||
Storage Temperature | °C | - 40 to +85 | |||||||||||
Package Dimensions (LxWxH) | mm | Type S: 89x51x9.2 Type F: 96x78x8 Type L1: LGX box single wide | Type F: 96x78x8 Type G: 96x78x13 Type H: 96x78x16 Type R1: 19” Rack single wide Type L1: LGX box single wide*** Type L2: LGX box double wide | Type H: 96x78x16 Type R1: 19” Rack single wide Type L2: LGX box double wide*** | Type G: 96x78x13 Type H: 96x78x16 Type R1: 19” Rack single wide Type L2: LGX box double wide*** | ||||||||
Package Dimensions (LxWxH) [Type A (Ribbon and Bare Fiber)] | nm | 40x4x4 | 50x7x4 | 40x4x4 | 50x7x4 | 40x4x4 | 50x7x4 | 50x7x4 | 60x7x4 | 50x7x4 | 60x7x4 | 16x12x4 | 80x12x4 |
Package Dimensions (LxWxH) [Type A (900um loose tube)] | mm | 50x7x4 | 50x7x4 | 50x7x4 | 60x7x4 | 60x7x4 | 60x12x4 | 60x12x4 | 80x12x4 | 80x20x6 | 80x20x6 | 100x40x6 | 100x40x6 |
Note: *At room temperature and excludes connector loss. **PDL: Polarization dependent loss *** For small form factor connectors only. All values referenced are without connector. For devices with connectors, insertion loss will be 0.3 dB higher.
