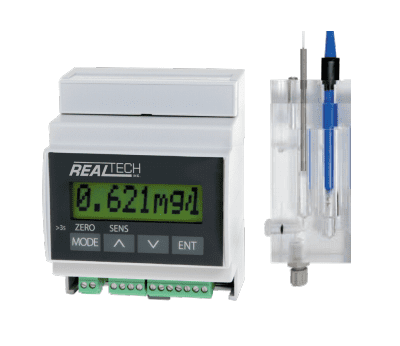

加拿大Real Tech REAL FREE CHLORINE ANALYZER 游离氯分析仪
加拿大Real Tech REAL FREE CHLORINE ANALYZER 游离氯分析仪
| CHARACTERISTIC | TECHNICAL DATA |
| SENSOR | |
| Parameters | Free chlorine, chlorine dioxide, and/or dissolved ozone |
| Free Chlorine Range | Selection of three measuring ranges: 0-2 mg/L , 0-20 mg/L or 0-200 mg/L |
| Resolution | 0.001, 0.01 or 0.1 |
| Units | ppm / mg/L |
| Sampling Time | 0.5 seconds |
| Measurement Principle | Potentiostatic measurement technology |
| Electrodes | 2 platinum rings |
| Reference | Gel with annular junction |
| Sensor Lifetime | Approximately 12-18 months. Depends on site and application |
| Calibration | Manual correction on the selected scale and sensor’s current offset |
| Cleaning | Pressurized DI water only |
| Temperature Compensation | Automatic with RTD |
| Flow | Constant flow required. ~150-500 mL/min |
| Fluid Connections | Inlet: 1/4” fitting. Outlet: fitting for 10x14 mm tubing |
| Dimensions | 5.90”H x 3.54”W x 1.57”D |
| TRANSMITTER | |
| Interface | Four buttons to control set-up and configuration |
| Display | 1 line x 8 character LCD |
| Output | Self-powered 4-20mA, RS485 serial to PC |
| Electrical | 9-36 VDC |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10°C to 60°C (14 to 140°F) |
| Weight | 5 lb |
| Enclosure | IP40, wall mountable. IP65 / NEMA4 optional. |
| Dimensions | 2.79”H x 3.74”W x 2.28”D (IP65/ NEMA 4 cabinet - 10.25”H x 10.25”W x 5.5”D) |
