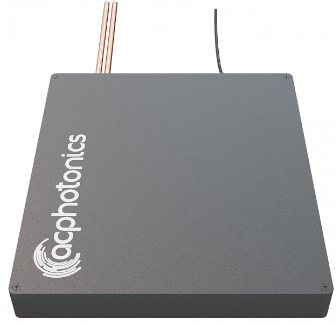

大功率PLC分路器

特性低插入损耗低PDL 优异的环境和机械稳定性符合Telcordia GR-1221和GR-1209标准 应用程序 FTTX (fttp, ftth, fttn, fttc) 无源光网络(PON) 局域网(LAN) 有线电视测试设备

产品规格

Parameter	Unit	Specifications
Operating Wavelength	nm	1310±40 or 1550±40 or 1260 ~ 1650
Type	dB	1x2	2x2	1x4	2x4	1x8	2x8	1x16	2x16	1x32	2x32	1x64	2x64
Insertion loss (max) *	dB	4.0	4.5	7.2	7.8	10.8	11.2	14.0	14.5	16.9	17.5	21.0	22.2
Uniformity *	dB	0.50	1.2	0.60	1.2	0.80	1.5	1.2	2.0	1.7	2.5	2.5	2.5
Polarization Dependent Loss*	dB	0.20	0.30	0.20	0.30	0.30	0.40	0.30	0.40	0.30	0.40	0.30	0.40
Wavelength Dependent Loss	dB	0.30	0.30	0.30	0.40	0.30	0.60	0.50	0.60	0.80	0.80	0.80	1.0
Temperature Dependent Loss (-40 ~ 85°C)	dB	≤ 0.5
Return Loss*	dB	≥ 50
Directivity *	dB	≥ 55
Optical Power	W	≤ 1.0(Higher power upon request)
Operating Temperature	°C	- 40 to +85
Storage Temperature	°C	- 40 to +85
Package Dimensions (LxWxH)	mm	Type S: 89x51x9.2 Type F: 96x78x8 Type L1: LGX box single wide						Type F: 96x78x8 Type G: 96x78x13 Type H: 96x78x16 Type R1: 19” Rack single wide Type L1: LGX box single wide** Type L2: LGX box double wide		Type H: 96x78x16 Type R1: 19” Rack single wide Type L2: LGX box double wide**		Type G: 96x78x13 Type H: 96x78x16 Type R1: 19” Rack single wide Type L2: LGX box double wide**
Package Dimensions (LxWxH) [Type A (Ribbon and Bare Fiber)]	nm	40x4x4	40x4x4	40x4x4	40x4x4	40x4x4	60x7x4	60x7x4	60x7x4	60x7x4	60x7x4	60x12x4	60x12x4
Package Dimensions (LxWxH) [Type A (900um loose tube)]	mm	60x7x4	60x7x4	60x7x4	60x7x4	60x7x4	60x7x4	60x12x4	60x12x4	80x20x6	80x20x6	100x40x6	100x40x6

Note: *At room temperature and excludes connector loss. ** For small form factor connectors only.
