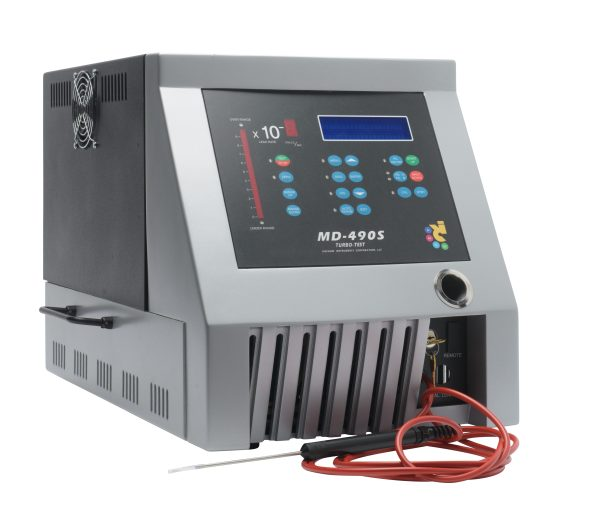

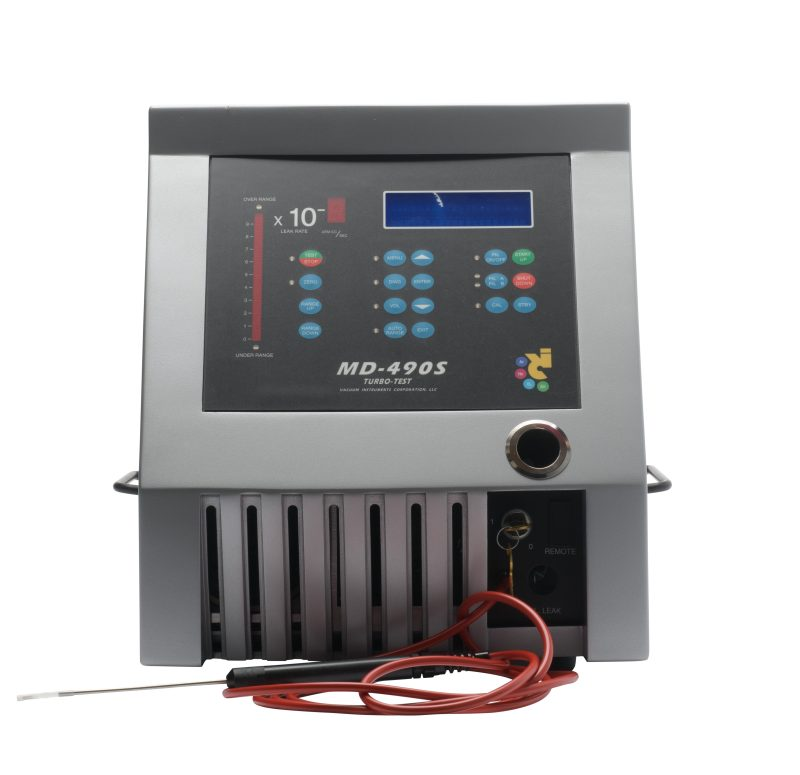

Tracer Gas Leak Detectors 示踪气体泄漏探测器 MD-490S – DUAL GAS 氦/氢泄漏检测器

Tracer Gas Leak Detectors 示踪气体泄漏探测器 MD-490S – DUAL GAS 氦/氢泄漏检测器

MD-490S Dual Gas是专为工业环境设计的最先进的氦气/氢气检漏仪。MD-490S Dual Gas利用VIC自己的工业级质谱仪实现最高灵敏度、最快响应时间和最小占地面积。 只需按下一个按钮，这种双气体装置就可以检测氦气或氢气示踪气体，同时使用一个内置的双用途校准气体泄漏。 它还满足在任何工业环境中都至关重要的坚固性、可靠性和易于维护的严格要求。

MD-490S DUAL GAS: APPLICATIONS  应用

  • AUTOMOTIVE
    • Exhaust System
    • Cooling Circuit
    • Engine
    • Battery
    • Oil Pan
  • AIR CONDITIONING
    • Condenser Coils
    • Evaporator Coils
    • Compressor Seals
    • Refrigerant Tubing
    • Valve and Joint
  • MEDICAL
    • IV Bag
    • Implantable Device
    • Syringe and Vial
    • Medical Pouch
    • Packaging
  • NUCLEAR
    • Fuel Rod
    • Coolant System
    • Containment Vessel
    • Storage Container
    • Glove Box
  • AEROSPACE
    • Fuel System
    • Hydraulic System
    • Oxygen System
    • Pressurized Cabin
    • Cooling System
    MD-490S DUAL GAS: FEATURES  功能
    Main Features
    • Fastest response time in the industry (less than 0.5 seconds)
    • Tracer gas background suppression
    • Sensitivity to 5 x 10-8 atm cc/secs
    • Less than 3 minutes total start-up time
    • Fully automatic calibration sequence with built-in dual purpose gas leak
    • User selectable between helium and hydrogen sniffer
    • Front panel key lock-out
    • Sealed membrane keypad
    • Fully interactive system diagnostics with multilingual displays
    • High output (110dB) adjustable audio alarm
    Flexible Communication Format
    • Option Full duplex RS232 communication
    • Option AC & DC PLC interfacing
    • Option Analog outputs
    • Option Data Link Software

    MD-490S DUAL GAS: SPECIFICATIONS & OPTIONS
    Options
    • VIC exclusive Vibrated-Probe w/built-in Auto Zero switch
    • Remote Display
    • Carrying Case
    • Portable Cart
    Accessories
    • Smart Charge 5, Gas Handling Unit
    • Test Booths and Fixturing
    • Multi-point probes
    • Robotic Sniffing
    • Leak calibrator
    • Master leak
    • Connectors…
    TECHNICAL SPECIFICATIONS
    Weight 31.8 kg / 70 lbs
    Dimensions (WxHxD) 344x395x618 mm
    Electrical Supply 115/220 VAC, 60/50 Hz 6/3 Amps; CE Compliant
    Temperature Operating: +00C to +460C Storage: 00C to +600C
