Winkler AG WSKW2201-230XP006-0150STND 加热管

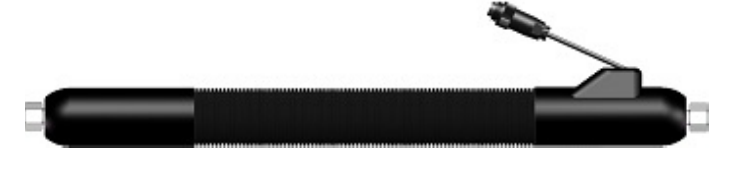

Heated hose with heating cable;
Operating voltage 230 VAC; Nominal Power 110 W/m (+10%/-5%);
Max. admissible operating temperature 200°C;
Sensor Pt100 (2-wire);
Nominal diameter DN 6; Length 1,50 m;
Max. admissible operating pressure 199 bar; Burst pressure 797 bar;
Connecting cable LL=1,5 m with pin connector;
Outer diameter (OD) approx. 43 mm.
Our information
Heating hose according to the following structure:
> PTFE basic hose DN6 with 2-fold stainless steel lapping.
> Valves; on both sides, union nut type DRK 1/4 ", material bichromated.
> Fluoropolymer insulated heating conductor, moisture-proof with protective
conductor braiding.
> Sensor; Type PT 100 in 2-wire technology.
> Sensor; Installation 300 mm from the E. connection side.
> Thermal insulation; Thermal fleece.
> Outer cover; corrugated hose in Polyamide (PA12).
> An. u. Graduation; Silikone caps.
> Mains and sensor cable are led out together on the side (type 1),
LL = 1500 mm, silicone protection hose,
Multi-pole plug 7pol (incl. PE) / 10A; Pin assignment: 1 = L, 2 = N, 5 + 6 = PT 100,
7 = PE.
From 2300 W total output
Multipolar plug 5pol (incl. PE) / 20A; Pin assignment: 1 = L, 2 = N, 3 + 4 = PT 100, 5
= PE.
