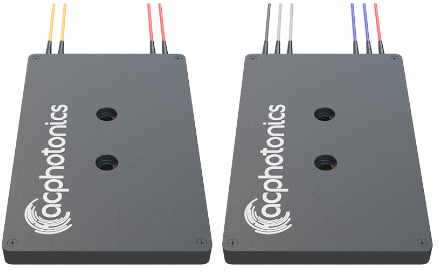

美国AC Photonics Inc. 粗波分复用器 CWDM 1和2通道OADM

CWDM 1和2通道OADM

ACP的粗波分复用器(CWDM)采用薄膜涂层技术和专有的非通量金属键合微光学封装设计。它具有低插入损耗，高通道隔离，宽通带，低温灵敏度和无环氧树脂光路。特性低插入损耗宽通带高通道隔离高稳定性和可靠性无环氧光路粗波分复用网 应用程序 CWDM信道添加/丢弃地铁/接入网络有线电视光纤系统

产品规格

Parameter	Unit	Specifications
		Mux/Demux
Operating Wavelength	nm	1270 ~ 1610(Full band (FB)) 1270 ~ 1350 or 1430 ~ 1610(Standard)
Center Wavelength	nm	1270, 1290, ......1610 or 1271, 1291, ......1611
Center Wavelength Accuracy	nm	± 0.5
Channel Spacing	nm	20
Channel Passband (@-0.5dB bandwidth)	nm	≥ 13
Number of Channels		Ch 1	Ch 2
Insertion Loss (Add / Drop Ch. 1)	dB	≤ 0.6	≤ 0.9
Insertion Loss (Express Ch.)	dB	≤ 0.6	≤ 1.2
Channel Isolation (Demux only)	dB	≥ 30(Adjacent) ≥ 40 (Non-adjacent)
Add / Drop Channel Ripple	dB	≤ 0.3
Express Channel Isolation	dB	≥ 25
Insertion Loss Temperature Sensitivity	dB/°C	≤ 0.003
Wavelength Temperature Shifting	nm/°C	≤ 0.002
Polarization Dependent Loss	dB	≤ 0.10
Polarization Mode Dispersion	ps	≤ 0.10
Directivity	dB	≥ 50
Return Loss	dB	≥ 45
Optical Power	mW	≤ 300
Operating Temperature	°C	0 to +70 (Extended temperatures are also available upon request)
Storage Temperature	°C	- 40 to +85
Package Dimensions	mm	S= 89x51x8.0

All values refenced are without connector.
